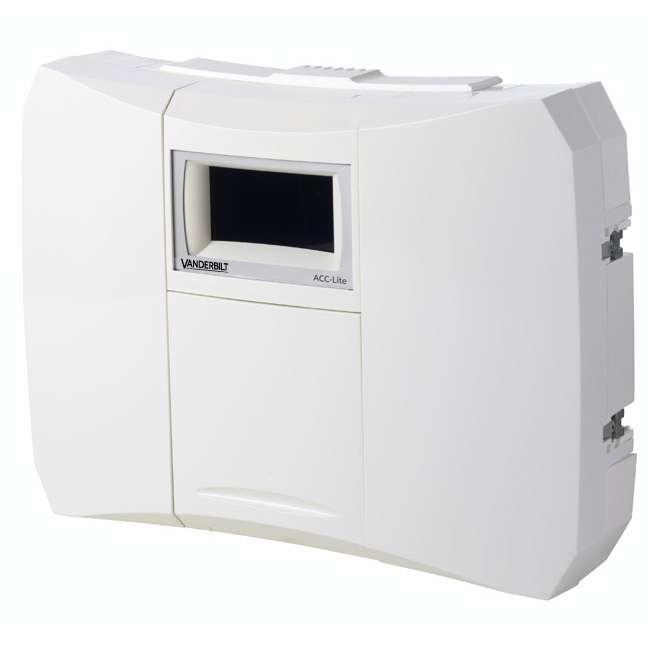

AC5200 SiPass integrated ACC-Lite

  • Description

Product information


The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders. The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.



Cost-effective and simple installation for any facility

  • User-friendly hardware providing easy configuration
  • Ideal controller for door control at remote locations
  • Can be used in conjunction with the standard ACC (AC5100)
  • Fully-featured controller providing all your access control needs
  • Distributed intelligence for maximum performance and reliability
The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller (ACC). It can manage up to 40,000 cardholders.

The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices.

Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a twoport Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels.

In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored

Performance
With a great emphasis on maximum performance and high reliability, the AC5200 is the ideal, fully-featured controller for door control at remote locations. As a cost-effective  alternative to the standard ACC (AC5100) of SiPass integrated, the AC5200 features  easy installation and operational safety.

Fast response time
With the AC5200, you possess the optimum access control solution with the fastest
response time. Such high-speed performance and efficiency completely eliminates the
possibility of long queues, proving to be totally reliable even during peak usage times.

Software
The simplicity of updating local device firmware within SiPass integrated allows it to be done without having to visit the controller cabinet or the local devices.

Communication
The AC5200 communication, using TCP/IP communication with advanced encryption techniques, ensures data integrity and security at all times.

Functionality
As a fully functioned access controller, the AC5200 has many advanced functions that provide enough power and flexibility for installation at any facility.
