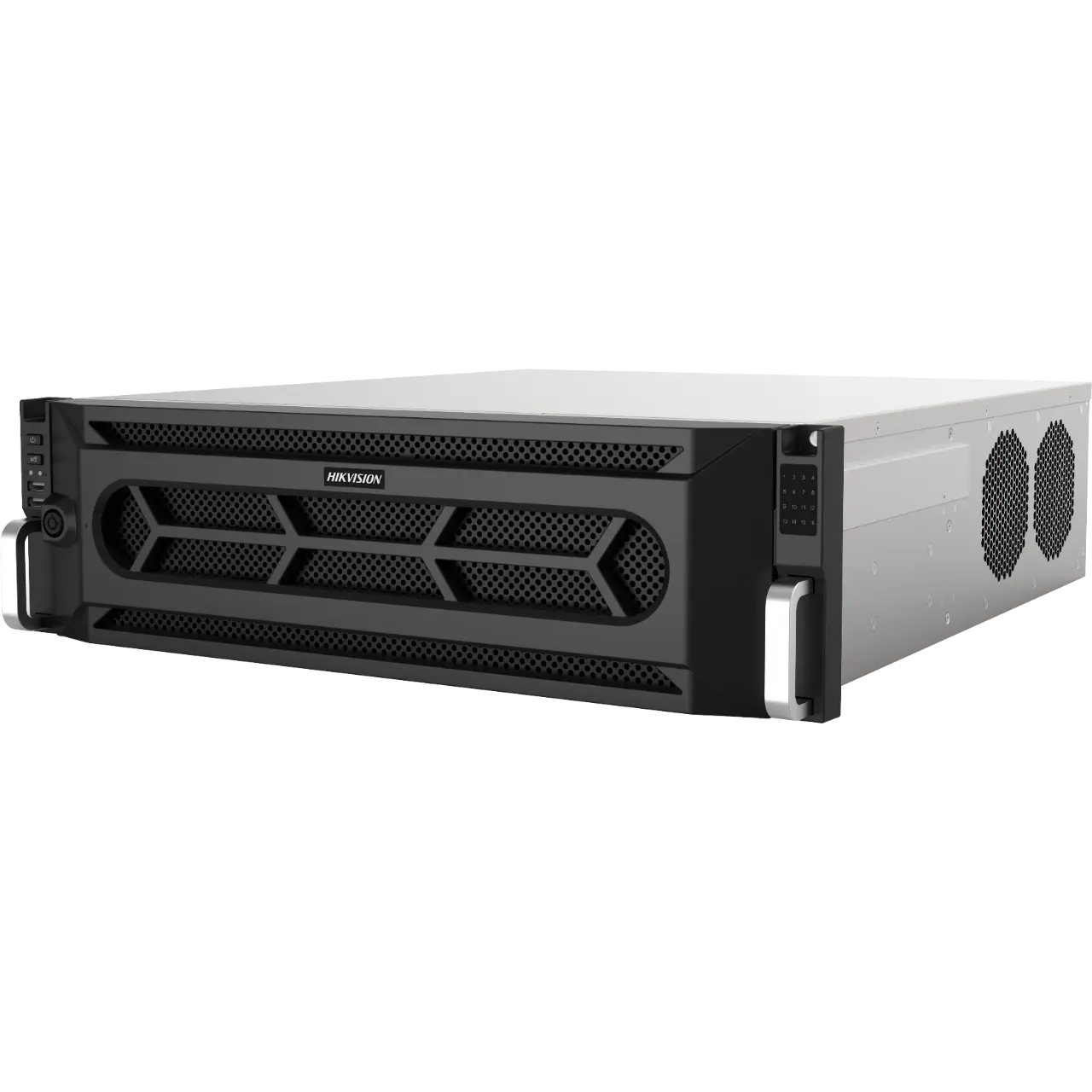

DS-9000AI-S16-D Series

  • Description

Dual-Board X86 NVR

  • Ultra series [100,256] -ch, pre-installed OS Ubuntu Linux, dual board, 16 HDD
  • Unique module featuring the strengths of outstanding hardware development
  • Configurable alarm I/O and PoE interfaces for third-party integration
  • Multiple models with corresponding hardware such as CPU and memory, able to provide for a host of applications
  • Advanced industrial design and intuitive user interfaces
  • Extensive experience in hardware development and OEM services



Features and Functions


Professional and Reliable
    • New logical and visualized GUI design.
    • Integrates with multiple technologies, including encoding and decoding technology, embedded technology, storage technology, network technology, etc.
    • Ubuntu Linux is the default operation system. Supports installing Microsoft Window operation system including Windows 7E,
    • Windows 10, and Windows Server 2012 R2.
    • Redundant power supply is provided to improve the system stability.
    • Adopts ANR technology to enhance the storage reliability when the network disconnected.
Video Input and Transmission
    • Up to 128 HD (High-Definition) IP cameras can be connected.
    • Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol).
Compression and Recording
    • H.265+ compression effectively reduces the storage space by up to 75%.
    • Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek, and ZAVIO.
HD Video Output
    • Supports live view, storage, and playback of the connected camera at up to 12 megapixels resolution.
    • Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
    • HDMI and VGA1 simultaneous outputs by default. Asynchronous outputs configurable.
Storage and Playback
    • Up to 16 SATA interfaces and 1 eSATA interface provided for HDD connection.
    • 10 TB capacity for each HDD.
    • Supports HDD hot swapping with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
    • Hot spare working mode is provided to constitute an N+1 hot spare system.
    • HDD data smart release when disk is full to extend the storage period.
    • HDD health monitoring.
    • Normal/Important/Custom video playback.
Smart Function
    • Connectable to smart IP camera.
    • 14 types of VCA detection: line crossing detection, region entrance detection, region exiting detection, intrusion detection, people gathering detection, fast moving detection, parking detection, unattended baggage detection, object removal detection, audio input exception detection, sudden change of sound detection, defocus detection, and sudden scene change detection.
    • Supports searching, playing back, and backing up VCA alarms



DS-9000AI-S16-D Series Datasheet
