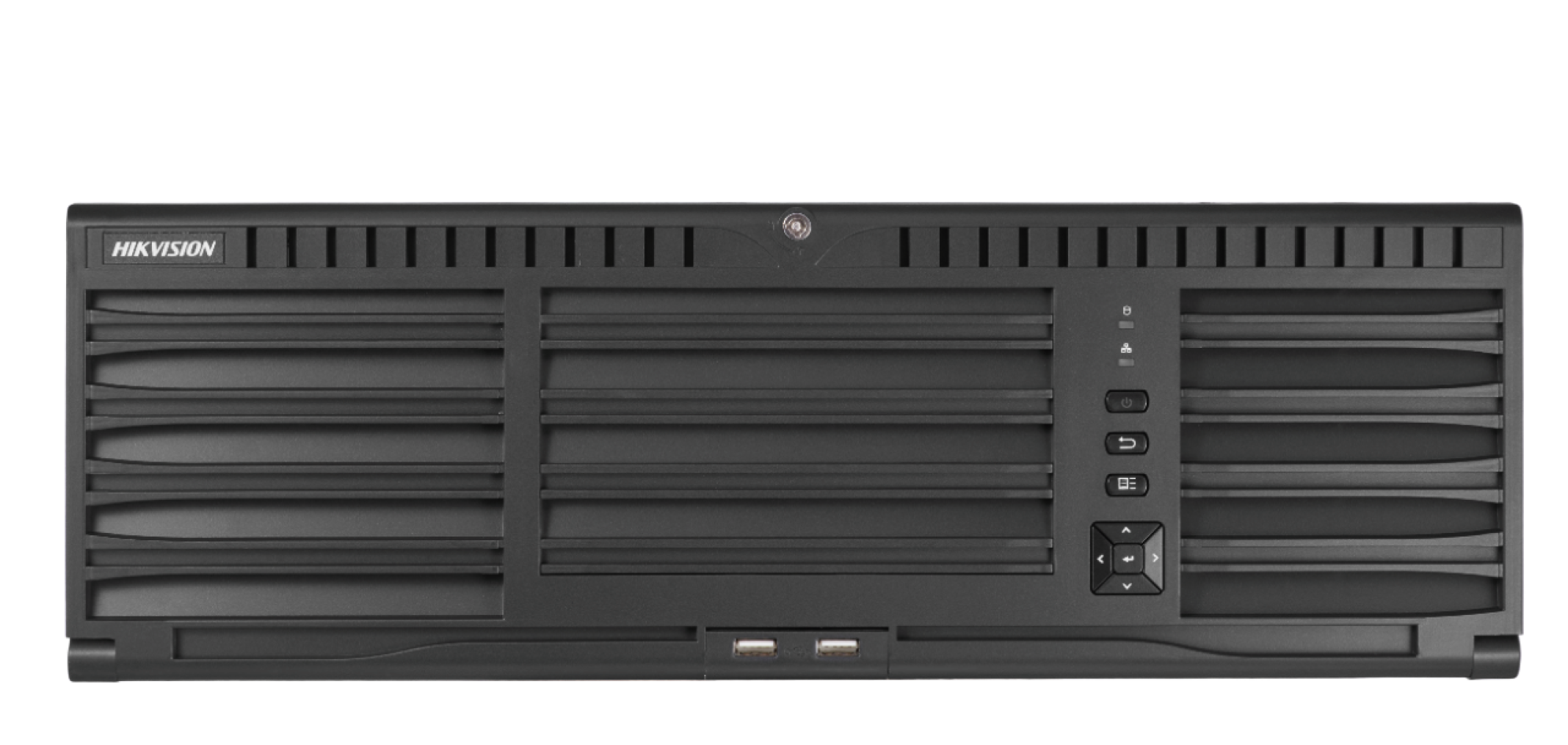

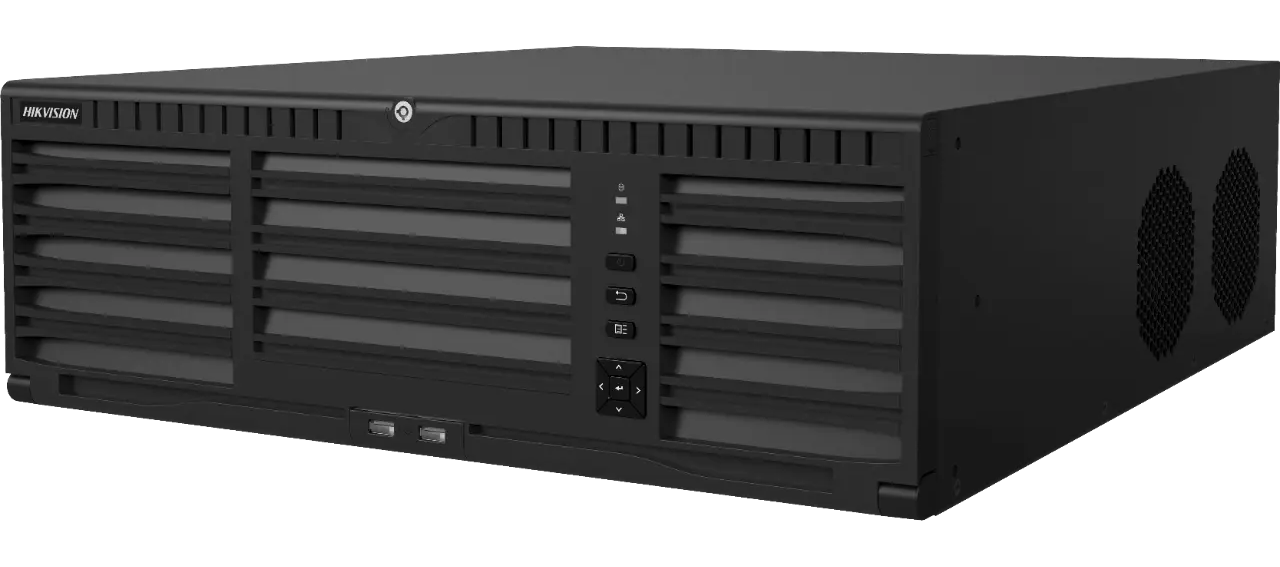

64-ch 3U 4K Super NVR

• • Up to 64 channel IP cameras can be connected
  • Up to 512 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 1 VGA interfaces
  • 16 HDD can be used for continuous video recording
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Features and Functions

Professional and Reliable

• • New logical and visualized GUI design.
  • Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of system running.
  • Supports redundant power supply to improve the system stability.
  • Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme configurable.
  • Either normal or hot spare working mode is configurable to constitute an N+1 hot spare system.

Video Input and Transmission

• • Up to 128/256 IP cameras can be connected.
  • Support live view, storage, and playback of the connected camera at up to 12 megapixels resolution.
  • H.265+ compression effectively reduces the storage space by up to 75%.
  • 4 self-adaptive 10M/100M/1000M network interfaces.
  • Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
  • Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon,  ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.

HD Output

• • Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary output.
  • HDMI and VGA1 simultaneous outputs by default. Asynchronous outputs configurable.
  • Video outputs at up to 4K (4096×2160) resolution.
  • Supports decoding up to 20 channels at 1080p resolution.

Storage and Playback

• • Up to 16 SATA interfaces and 1 eSATA interface provided for HDD connection
  • 10 TB capacity for each HDD.
  • HDD health monitoring.
  • Supports HDD quota and group modes; different capacity can be assigned to different channels.
  • Normal/Important/Custom video playback.

Various Applications

• • Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
  • Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized.
  • VCA detection alarm is supported.
  • VCA search for facial detection, people counting, heat map, etc.
  • Supports starting record with one key.
  • Realizes instant playback for assigned channel during multi-channel display mode.
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency.

DS-96000NI-I16 SERIES Datasheet
