EXSITE ENHANCED EXPLOSION PROOF CAMERA SERIES
Rugged and reliable explosion proof cameras for hazardous sites
Built to thrive in the harshest conditions
The Pelco ExSite Enhanced Explosion Proof Camera Series is purpose-built to monitor and control operations in hazardous locations with risks of explosion due to the presence of flammable liquids, gases or dust. Available in compact, fixed, PTZ and PTZ, with IR option.
- 316L Stainless Steel Construction: Heavy-duty camera housing meets explosion proof and dust ignition proof requirements
- Wide Temperature Range: Optimized to operate reliably even at increased temperature variances
- Hazardous Location Certifications: Complies with international standards: UL, CSA, ATEX, IECEx, EAC Ex

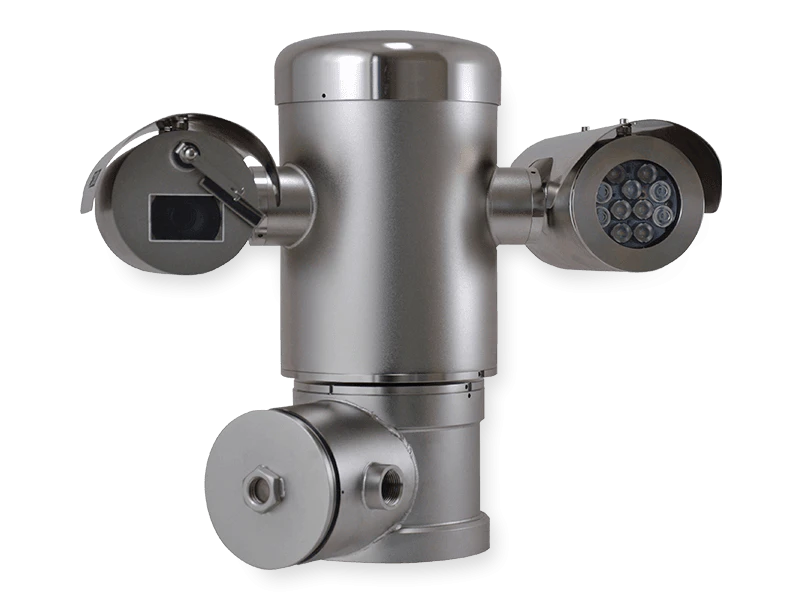

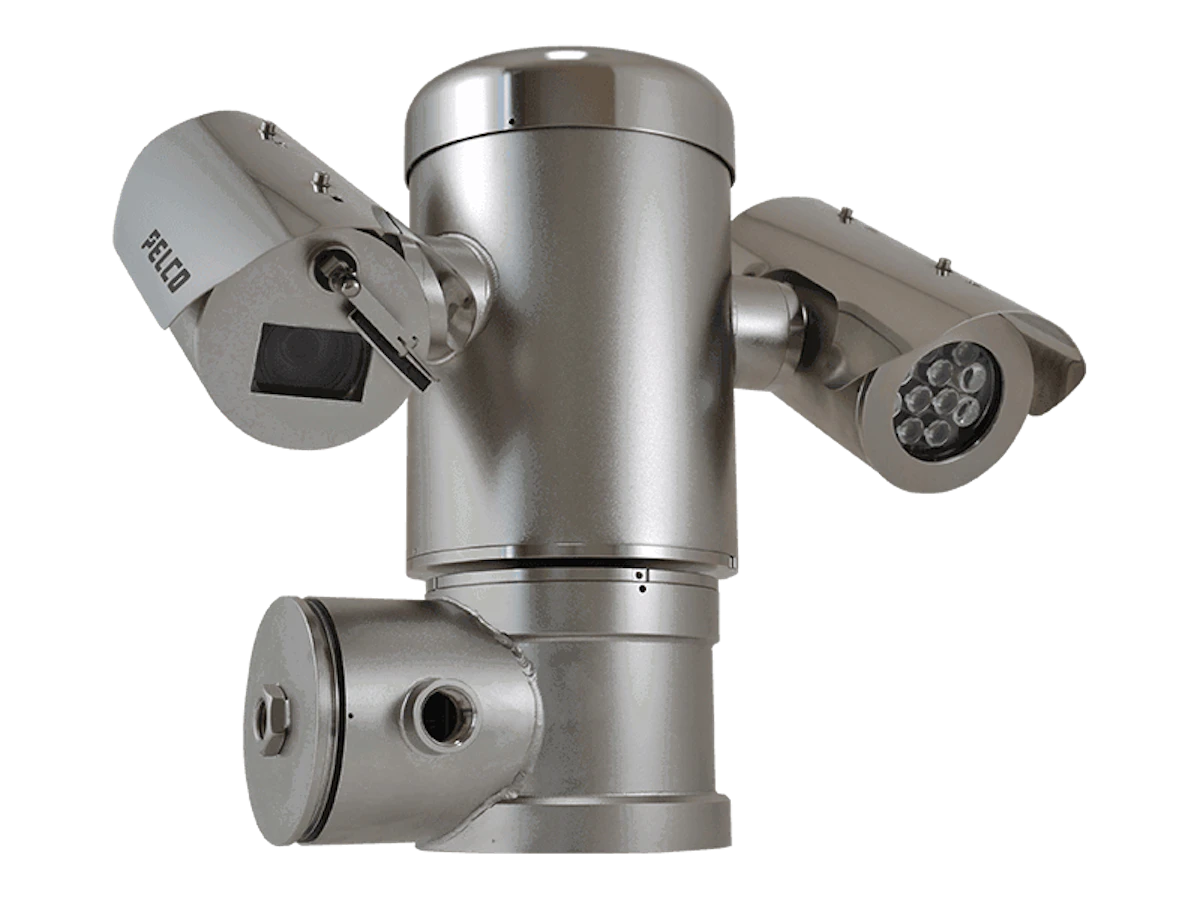

ExSite Enhanced 2 Series IR PTZ
The ExSite Enhanced 2 Series IR PTZ is an explosion-proof, day-to-night pan-tilt-zoom (PTZ) camera with built-in IR illumination. This dual-headed video security camera offers up to 30x zoom and full 1080p resolution. The IR illuminator provides clear object detection up to 200m away, even in total darkness and at different zoom levels. Designed with AISI 316L stainless steel and micro-shot, electro-polished surfaces, it offers maximum resistance in corrosive environments, such as industrial and marine locations. In addition, the ExSite IR PTZ offers up to IP69, NEMA Type 4X and Type 6P ratings, ensuring protection against extreme conditions, including water and dust. With the Small Form-Factor Pluggable (SFP) slot built into the junction box, this PTZ camera provides easy installation through fiber optic connections.
- Up to 1920 x 1080 resolution
- AISI 316L stainless steel construction and micro-shot, electropolished surfaces
- Rated to operate from –40° to 70°C ( – 40° to 158°F)
- True Wide Dynamic Range
- Electronic Image Stabilization
- Can handle the harshest weather conditions with the ability to operate from –40° to 70°C ( – 40° to 158°F)
- Integrated automated IR varizoom with 200m range for exceptional image quality

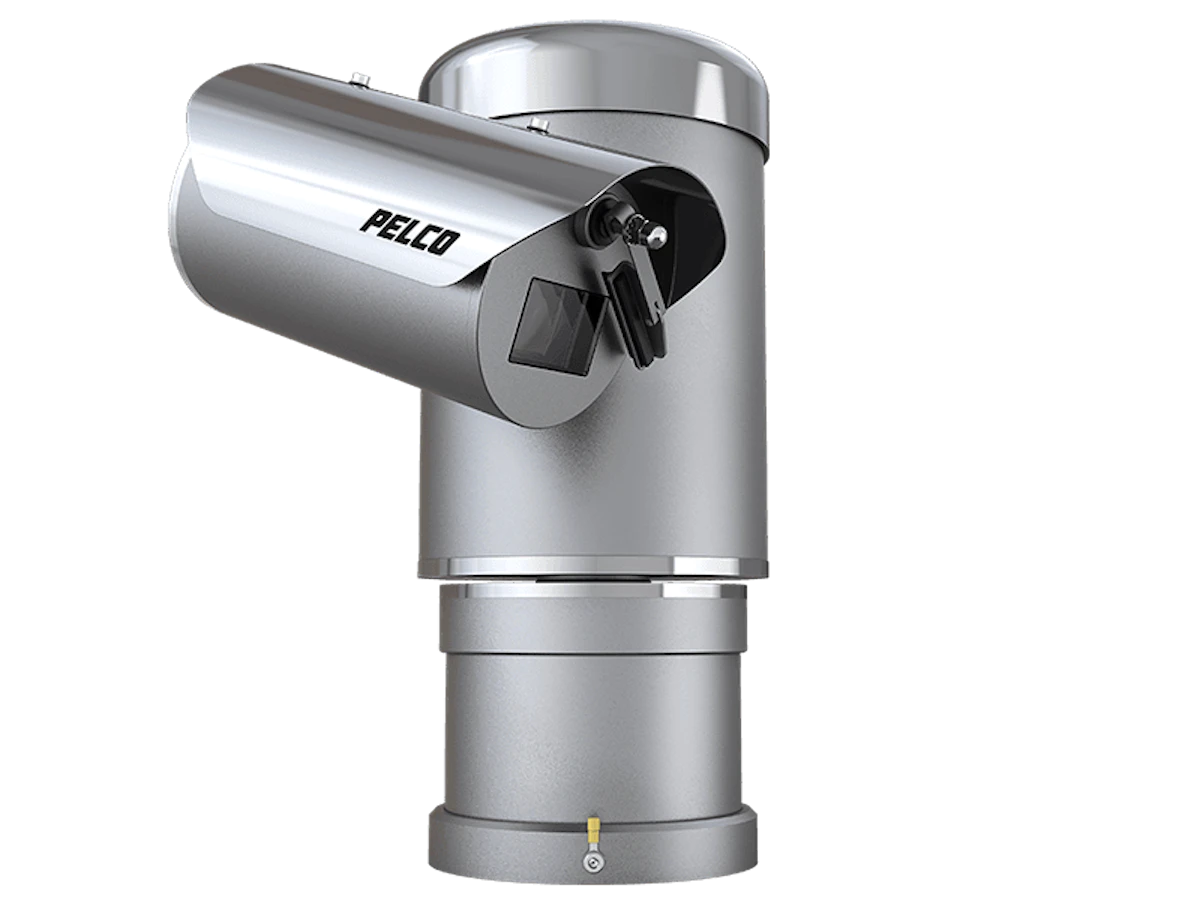

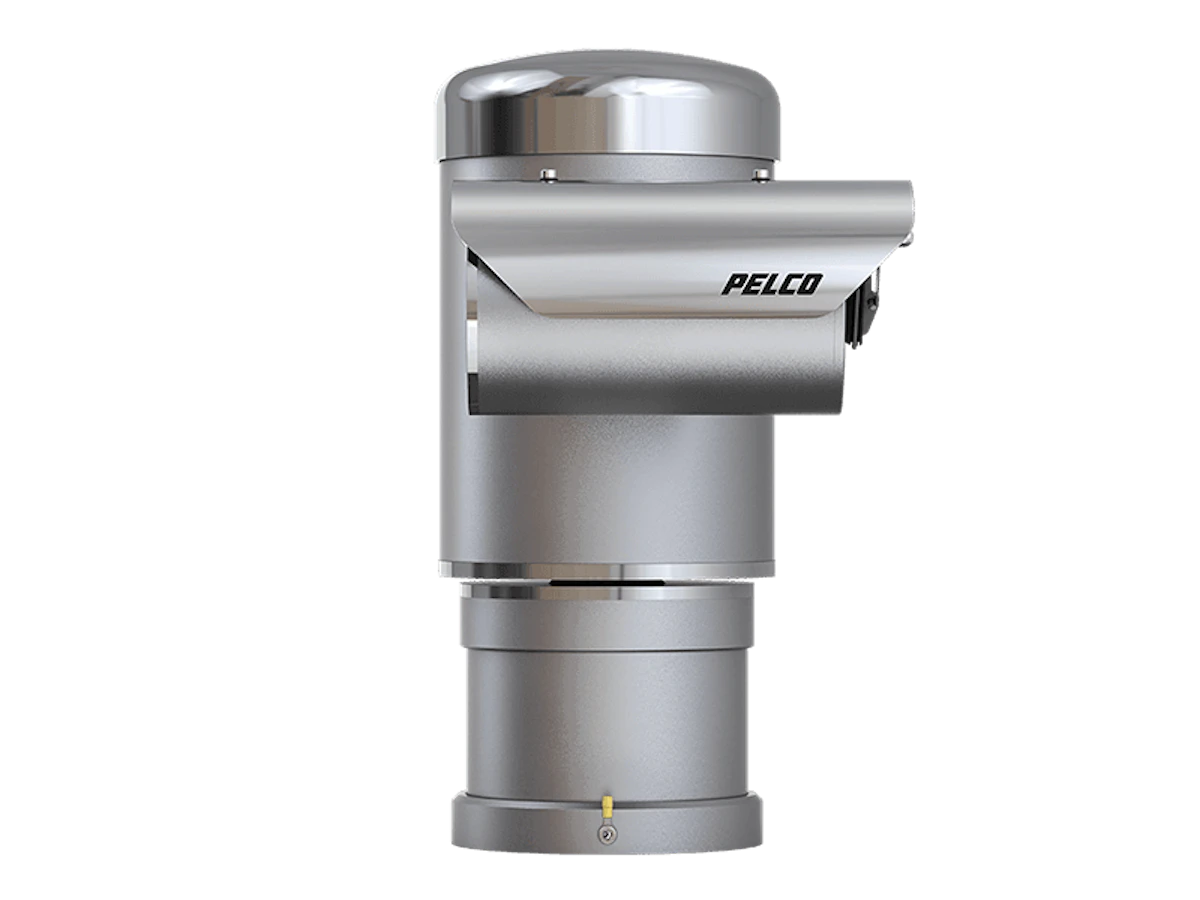

ExSite Enhanced PTZ 2 Series
Available in 2 MP, the ExSite Enhanced PTZ 2 Series camera is purpose-built to monitor operations and control processes in hazardous locations with risks of explosion due to the presence of flammable liquids, gases or dust. This rugged outdoor camera meets stringent explosion proof and dust ignition proof requirements, while complying with international regulatory standards (UL, CSA, ATEX, IECEx, EACEx).
With its pan/tilt/zoom design, this explosion proof camera is ideal to track movements in wide hazardous areas.
The ExSite Enhanced PTZ 2 Series provides operators crisp and clear evidence with up to 30x optical zoom, True Wide Dynamic Range and low-light capabilities for challenging lighting conditions common to hazardous areas.
This camera is built to survive in the harshest conditions. With an IP69 rating and a wide operating temperature range, it withstands water, high wind, high and low temperatures and resists corrosive elements.
- Up to 1920 x 1080 resolution
- AISI 316L stainless steel electropolished construction
- Rated to operate from –40° to 60°C ( – 40° to 140°F), with ambient convection
- True Wide Dynamic Range
- Electronic Image Stabilization
- Belt Drive Technology for reliable pan/tilt abilities
- Pelco Smart Analytics for detection, tracking and classification so you can find what you are looking for faster
ExSite Enhanced Fixed 2 Series
Available in 2 MP, the ExSite Enhanced Fixed 2 Series camera is purpose-built to monitor operations and control processes in hazardous locations with risks of explosion due to the presence of flammable liquids, gases or dust. This rugged outdoor camera meets stringent explosion proof and dust ignition proof requirements, while complying with international regulatory standards (UL, CSA, ATEX, IECEx, EAC Ex).
With its bullet design, this explosion proof camera is ideal to monitor targeted hazardous locations.
The ExSite Enhanced Fixed 2 Series provides operators crisp and clear evidence with up to 30x optical zoom, True Wide Dynamic Range and low-light capabilities for challenging lighting conditions common to hazardous areas.
This camera is built to survive in the harshest conditions. With an IP69 rating and a wide operating temperature range, it withstands water, high wind, high and low temperatures and resists corrosive elements.
- Up to 1920 x 1080 resolution
- AISI 316L stainless steel electropolished construction
- Rated to operate from –50° to 60°C ( – 58° to 140°F), with ambient convection
- True Wide Dynamic Range
- Electronic Image Stabilization
- 30x optical zoom for clear evidence of what is taking place on your sites
- Electronic Image Stabilization optimizes image clarity in high-vibration environments

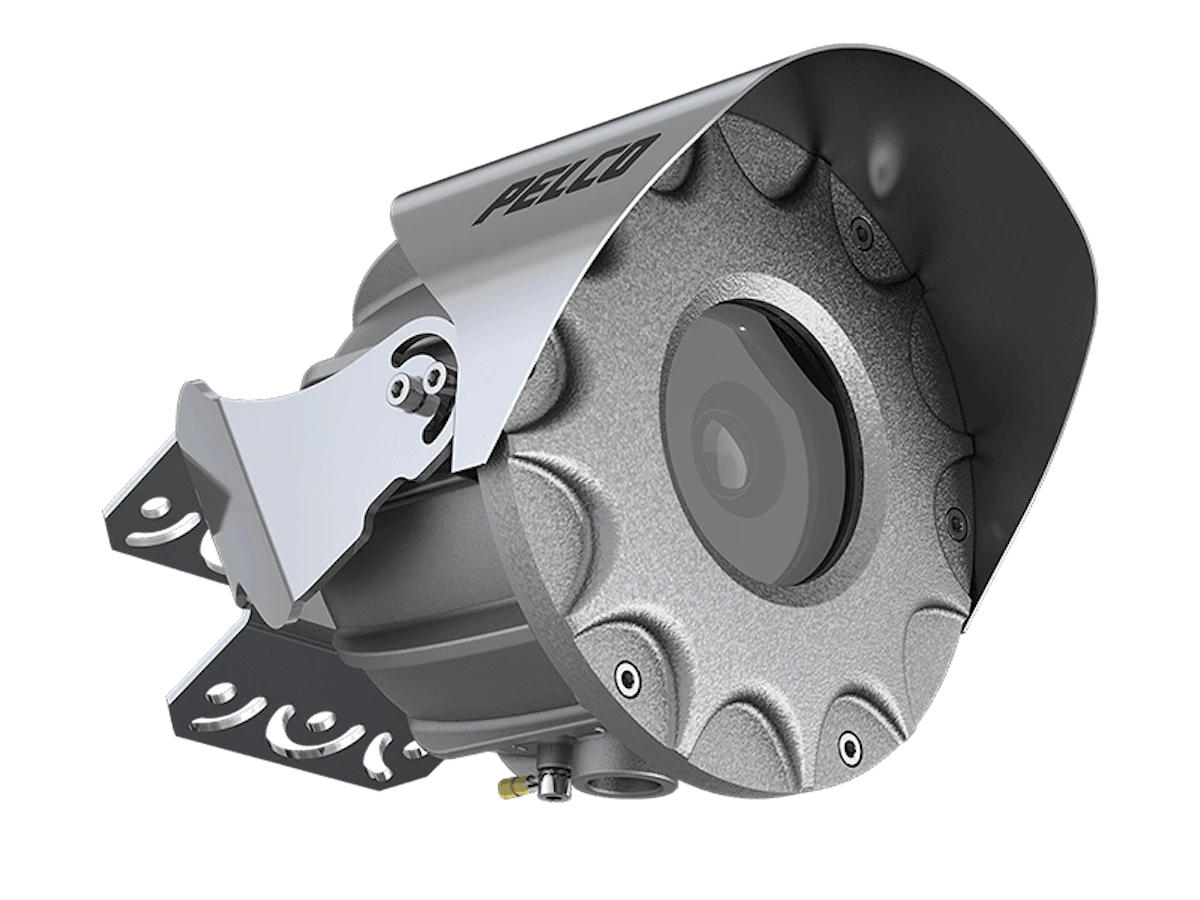

ExSite Enhanced Compact 2 Series
Available in 6 MP, the ExSite Enhanced Compact 2 Series camera is purpose-built to monitor operations and control processes in hazardous locations with risks of explosion due to the presence of flammable liquids, gases or dust. This rugged outdoor camera meets stringent explosion proof and dust ignition proof requirements, while complying with international regulatory standards (UL, CSA, ATEX, IECEx, EAC Ex).
With its higher resolution, this explosion proof camera offers enhanced situational awareness over small areas, such as a manufacturing line, a truck shipping dock or inside a silo. Additionally, its AISI 316L stainless steel housing complies with food safety regulations, making the camera highly suitable for food processing plants.
The ExSite Enhanced Compact 2 Series provides operators crisp and clear evidence with True Wide Dynamic Range and low-light capabilities for challenging lighting conditions common to hazardous areas.
This camera is built to survive in the harshest conditions. With an IP69 rating and a wide operating temperature range, it withstands water, high wind, high and low temperatures and resists corrosive elements.
- Up to 3200 x 1800 resolution
- AISI 316L stainless steel electropolished construction
- Rated to operate from –40° to 60°C ( – 40° to 140°F), with ambient convection
- True Wide Dynamic Range
- Pelco Basic and Smart Analytics
- 6 MP resolution for sharp image quality
- True Wide Dynamic Range captures details in scenes with both very bright and dark areas for increased visibility
